Product Description:
This is a high-performance digital system designed to handle low-voltage differential signals. It effectively prevents interference from crosstalk and external sources through its use of a fully-shielded 100 Ω interconnect system utilizing shielded twisted quad cables.
The HSD system uses well-known standard components, making it a cost-efficient and reliable choice for high-speed data connections. It is commonly used in Ethernet applications and meets the demanding standards of the automotive industry.
The HSD interconnect system is specifically designed for the automotive market, with support for various applications such as LVDS cameras, USB, and IEEE 1394. It offers features such as mechanical keying, latching, color coding options, and a compact size to meet the strict requirements of the global automotive industry.
Features:
Features of HSD Interconnect System
HSD (High-Speed Digital) employs a fully-shielded interconnect system that operates at 100 Ω and is capable of accommodating shielded twisted quad cables. Some of its prominent features include:
- Dual lock mechanism for primary and secondary locking.
- Utilizes crimp connection method for secure connections.
- Provides high cable retention force to prevent accidental disconnections.
- Efficient coding options on the plastic housing to prevent misconnections.
- Ensures prevention of contact pin damage.
Technical Parameters:
| Product Name | FAKRA HSD Connector |
| Orientation | Right Angle |
| Mounting Type | PCB/Panel Mount |
| Working Voltage | 60 V Rms |
| Operating Temperature | -40℃ To +105℃ |
| Impedance | 100Ω |
| Number of Positions | 4+2 Pin |
| Frequency Range | DC To 6 GHz |
| Applications | LVDS Camera, USB, AndIEEE 1394 Applications |
| Key Features | Automotive Connectors, Coaxial Cable Connector, HSD Connector Automotive |
Applications:
- Customized for Automotive Applications: Equipped with mechanical keying, latching mechanisms, and customizable color coding options, the HSD system adapts seamlessly to diverse requirements within the global automotive market.
- Versatile Cross-Industry Applications: Beyond automotive, the HSD system serves various sectors including telecom, digital infotainment, and symmetrical networks.
- Superior Connectivity in Telecom: Widely employed in telecom applications like radio base stations, HSD ensures uninterrupted connectivity and exceptional performance.
- Enhanced Digital Infotainment: In digital infotainment, HSD facilitates high-speed data transfer and supports multiple protocols including USB 1.0, 2.0, and 3.0, offering a superior entertainment experience.
- Compatibility in Symmetrical Networks: With compatibility extending to LVDS, Ethernet, IEEE 1394 (Firewire), and GVIF, the HSD system is a versatile choice for digital symmetrical networks, ensuring seamless communication.

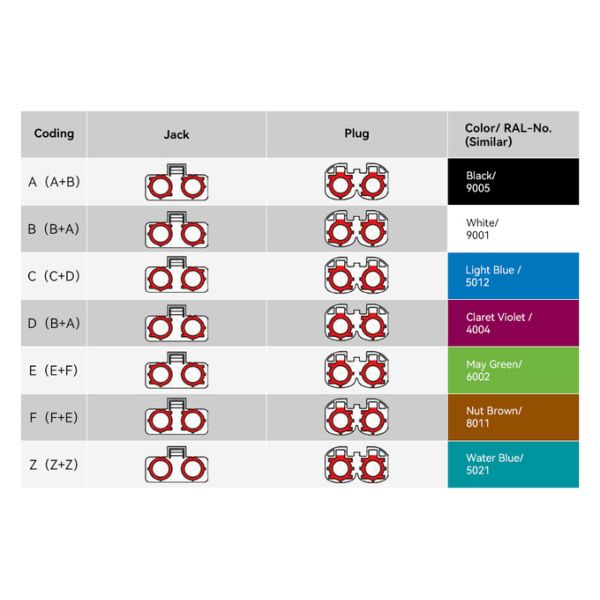

HSD Coding:
Customization:
We welcome OEM and ODM requests, offering customizable options for cable types, connector types, and cable lengths. Your specific requirements are carefully considered to deliver a tailored solution. Don't hesitate to reach out to us for further assistance.
