Product Description:
HSD connectors are highly versatile and reliable connectors used in various automotive applications. They excel in providing high-speed data transmission, making them ideal for connecting LVDS cameras, in-car entertainment systems, advanced driver assistance systems (ADAS), and Ethernet connectivity within vehicles. With their compact design, secure locking mechanisms, and robust signal transmission, HSD connectors are a preferred choice for automotive electronics, ensuring efficient and dependable connectivity in challenging automotive environments.
Features:
- Versatile power options: Flexibility with +2, +4 and +8 power pin connectors that can be customized to specific requirements. Variants with additional pins (MQS contacts) provide power options, making them suitable for a wide range of automotive systems.
- Powerful digital signaling: HSD connectors provide high-performance digital systems designed for low-voltage differential signals. They are shielded to protect against crosstalk and external interference, ensuring reliable data transmission in demanding automotive environments.
- Automotive Market Compatibility: HSD connectors are designed for automotive applications including LVDS cameras, USB and IEEE 1394 applications. They feature mechanical keying, locking mechanisms, color coding options, and compact dimensions to meet the stringent requirements of the global automotive market.
- Secure Locking Mechanisms: HSD connectors are equipped with primary and secondary locking mechanisms for increased stability and security in automotive applications with high vibration and movement.
Technical Parameters:
| Parameter | Specification |

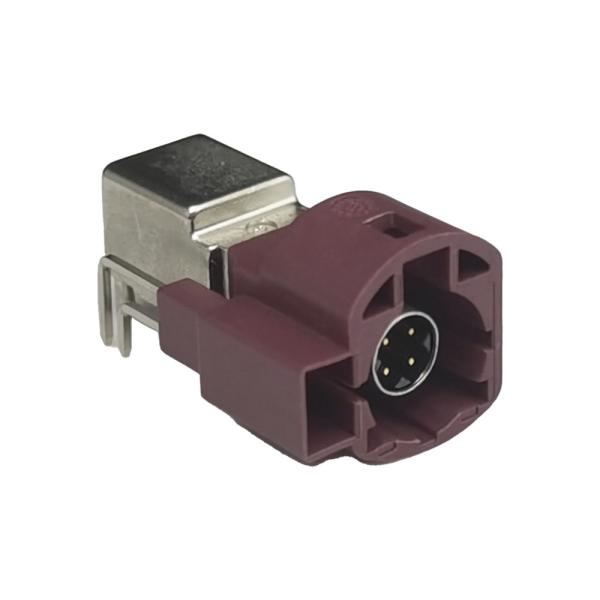

| Product Name | FAKRA HSD Coaxial Cable Connector |
| Mounting Type | PCB/Panel Mount |
| Frequency Range | DC to 6 GHz |
| Orientation | Rignt Angle Type |
| Working Voltage | 60 V Rms |
| Color | Claret Violet/4004 Color |
| Number Of Positions | 4+2Pin |
| Operating Temperature | -40℃ to +105℃ |
| Code | D-code |
| Services | OEM/ODM Accept |
Applications:
- In-vehicle LVDS camera: Ensures reliable data transfer for advanced camera-based safety and navigation systems.
- High-speed data transfer for in-car entertainment systems: Enables seamless audio and video playback to enhance the overall driving experience.
- Advanced Driver Assistance Systems (ADAS): Transmits real-time sensor data to enhance safety features. These features include Lane Keeping Assist and Collision Avoidance.
- In-vehicle Ethernet applications: Meet the automotive industry's stringent requirements for connectivity and data transfer speeds.
HSD Coding:
Customization:
We accept OEM and ODM orders. Custom cable types, connector types and cable lengths are available. We will be happy to consider your requirements in order to provide an effective solution. Please feel free to contact us.
Support and Services:
1.Accept OEM and ODM orders.
2.Samples are free of charge, only the customer has to pay the courier fee.
3.Support multiple logistics methods.
4.Fast delivery time and first-class service.
FAQ:
1.Q:How can l get the automotive FAKRA/HSD/MINI FAKRA connector price list?
A:Please contact us with detailed inquiry information, so we can offer the latest price for you.
2.Q:Can you provide samples to me?
A:Yes,we can provide samples to you and you need to pay the shipping cost.
3.Q: How do you solve after-sale service?
A: After the receipt of the goods, if you are not satisfied or have any other problems, please contact us to communicate as soon as possible, and we will give you a quick and reasonable solution. Thanks a lot!
